Dell XPS 9550, Precision 5510 84Wh 6 Cell Laptop Battery 4GVGH 1P6KD T453X

Dell XPS 9550, Precision 5510 84Wh 6 Cell Laptop Battery 4GVGH 1P6KD T453X

UK Seller - Free UK Next Day Shipping - 1 Year Warranty

Condition: New - limited stock

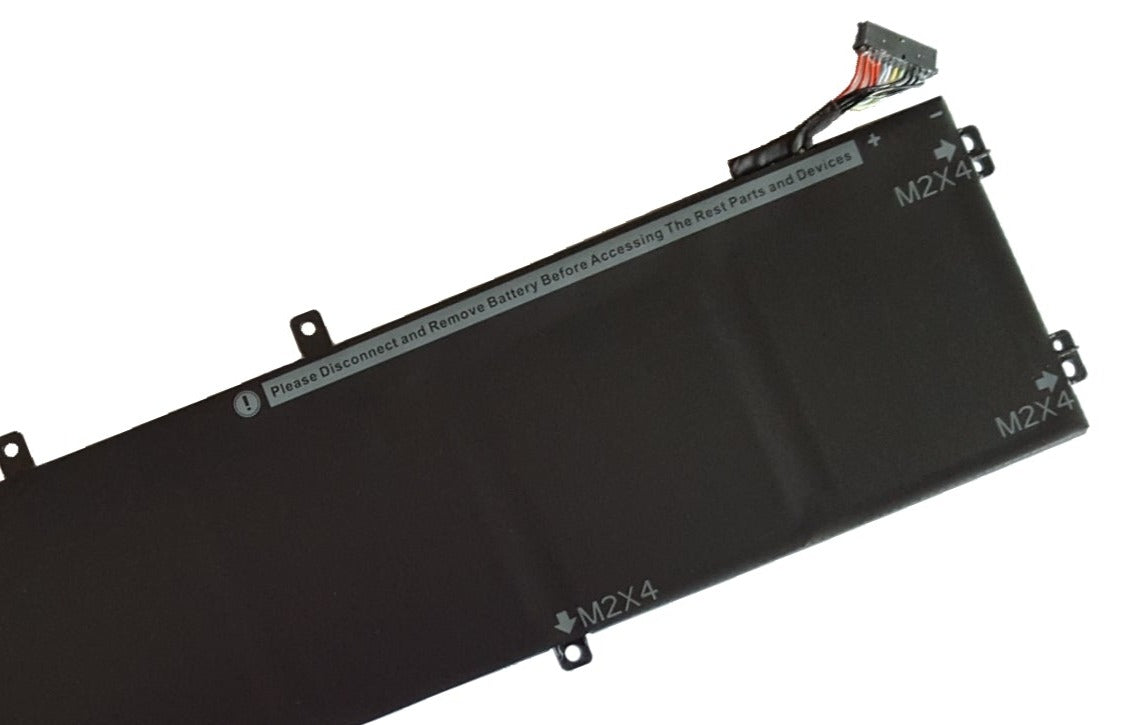

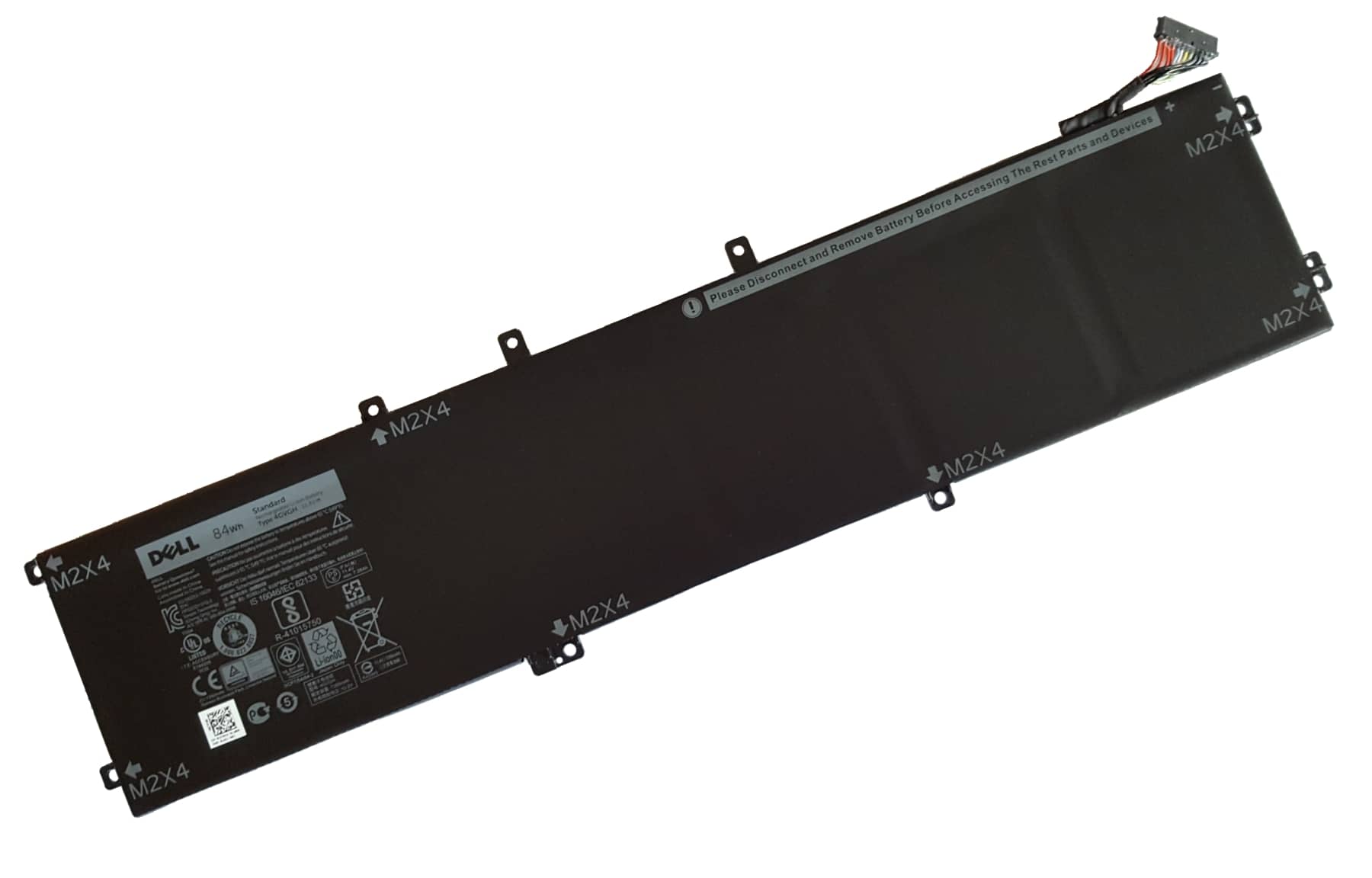

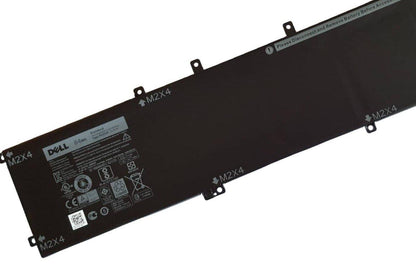

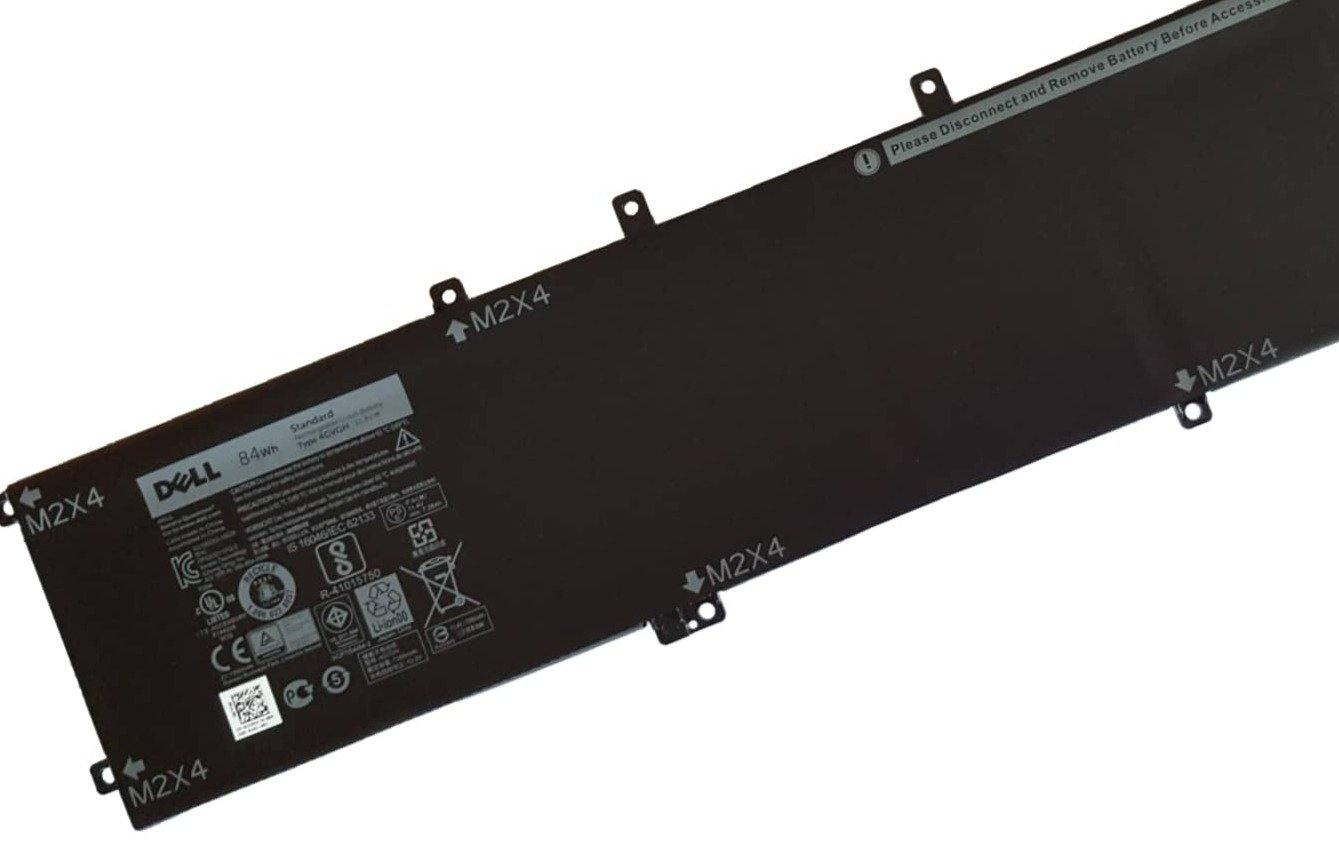

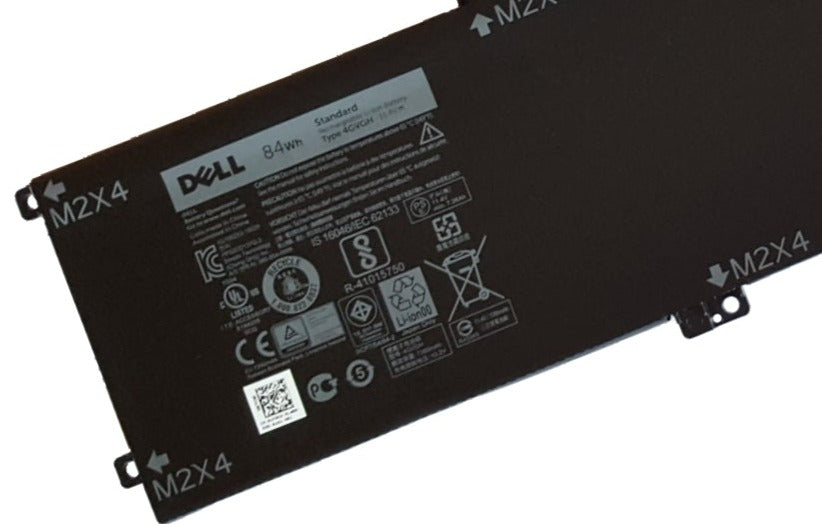

Genuine Dell replacement laptop battery for Dell Precision 5510 84Wh Primary Battery Type 4GVGH Dp/n 1P6KD T453X and Dell XPS 15 9550 Primary Battery Type: 4GVGH DP/N: 1P6KD T453X

DELL 84WH TYPE 4GVGH

Please note: If you are upgrading your current battery to this higher capacity version, please check you have sufficient space to accommodate the extra length.
Cells: 6 Cells
WH: 84Wh

Dell XPS 9550 Battery
Dell Precision 5510 Battery

Supplied with 12 months warranty. Same-day, next-day shipping on all orders before 4 pm Monday - Friday.
If you have any questions, please call us on 01243 866053

How to install the battery

PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We recommend only competent computer engineers should install this part. We also recommend using anti-static equipment to prevent hardware damage.

Removing the old battery

1. Power off the laptop.

2. Turn over the laptop and unscrew the base plate cover.

3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)

4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)

5. Unscrew the battery and remove the battery from the laptop.

Installing the New battery

1. Align the new battery into position (Do not plug the battery in yet)

2. Install the battery screws

3. Plug the battery cable into the motherboard

4. Replace the base plate by applying light pressure to ensure it's seated correctly.

5. Install the base plate screws

6. Plug the power adapter into the laptop and switch on the laptop.
