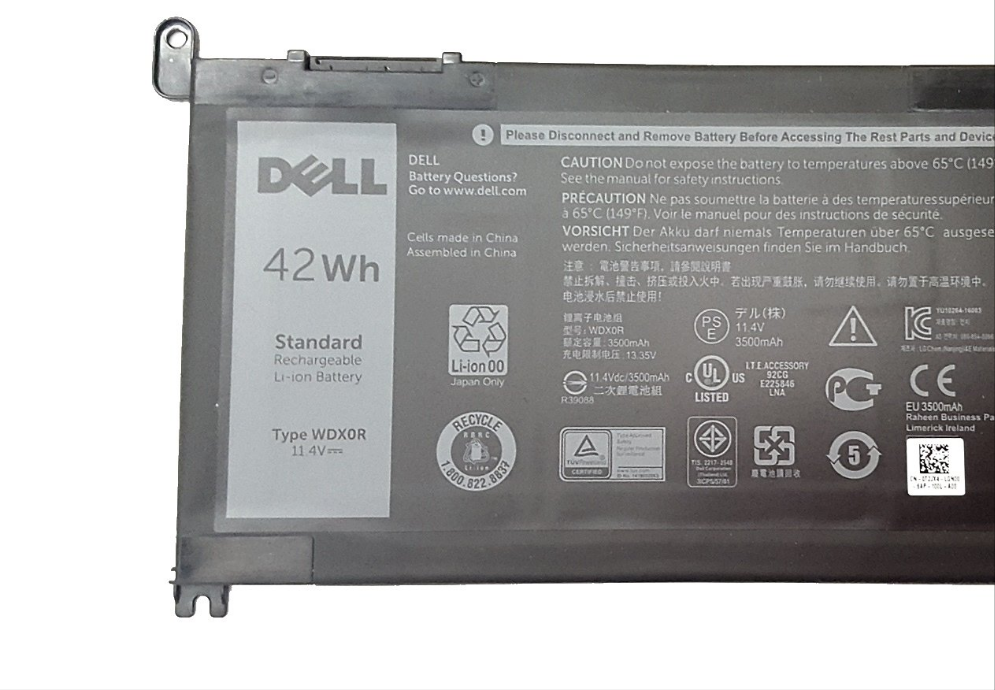

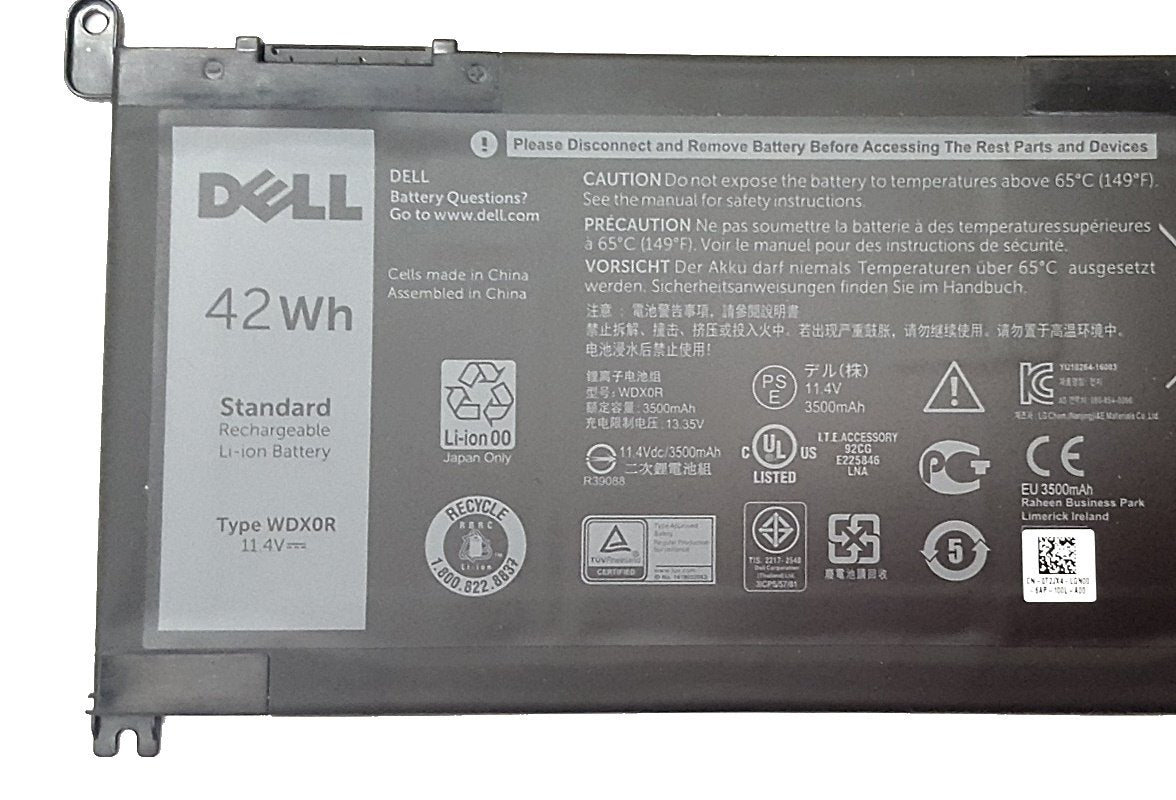

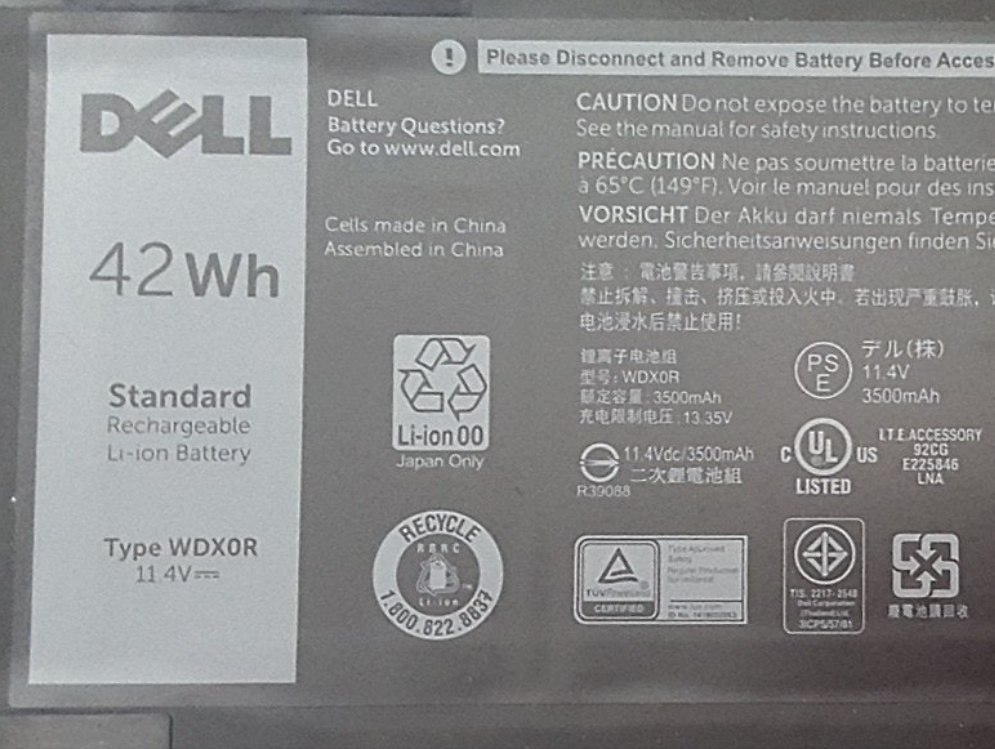

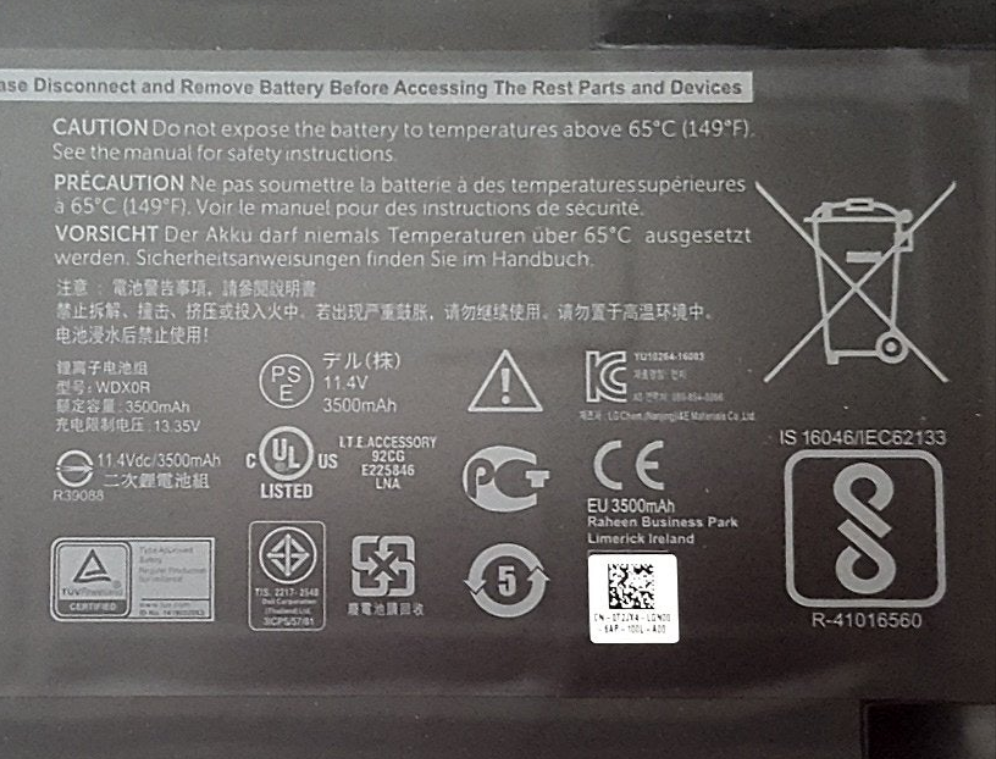

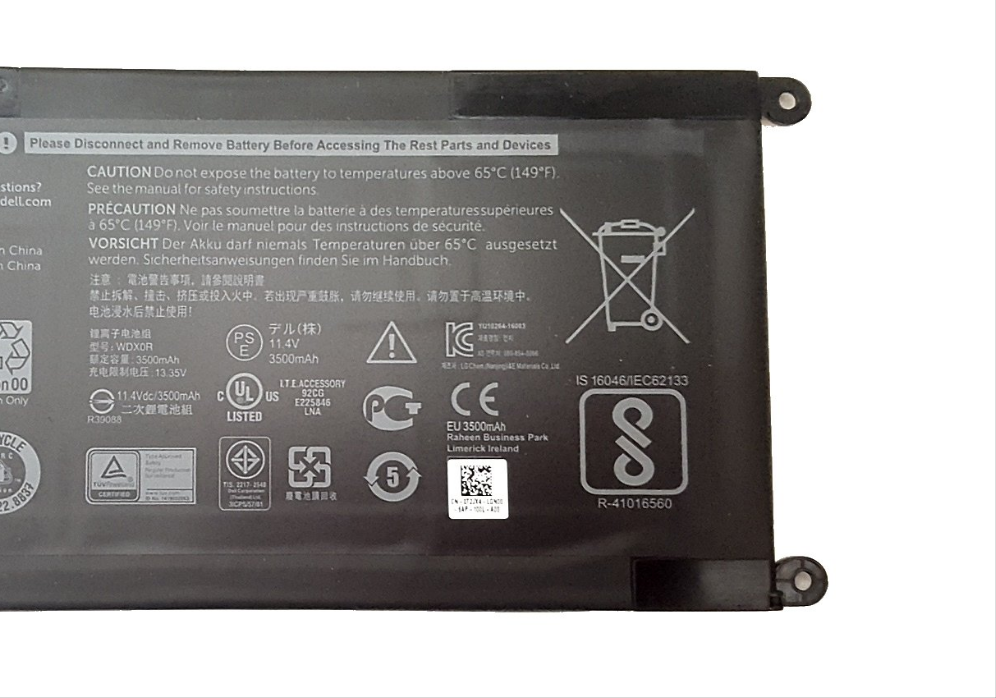

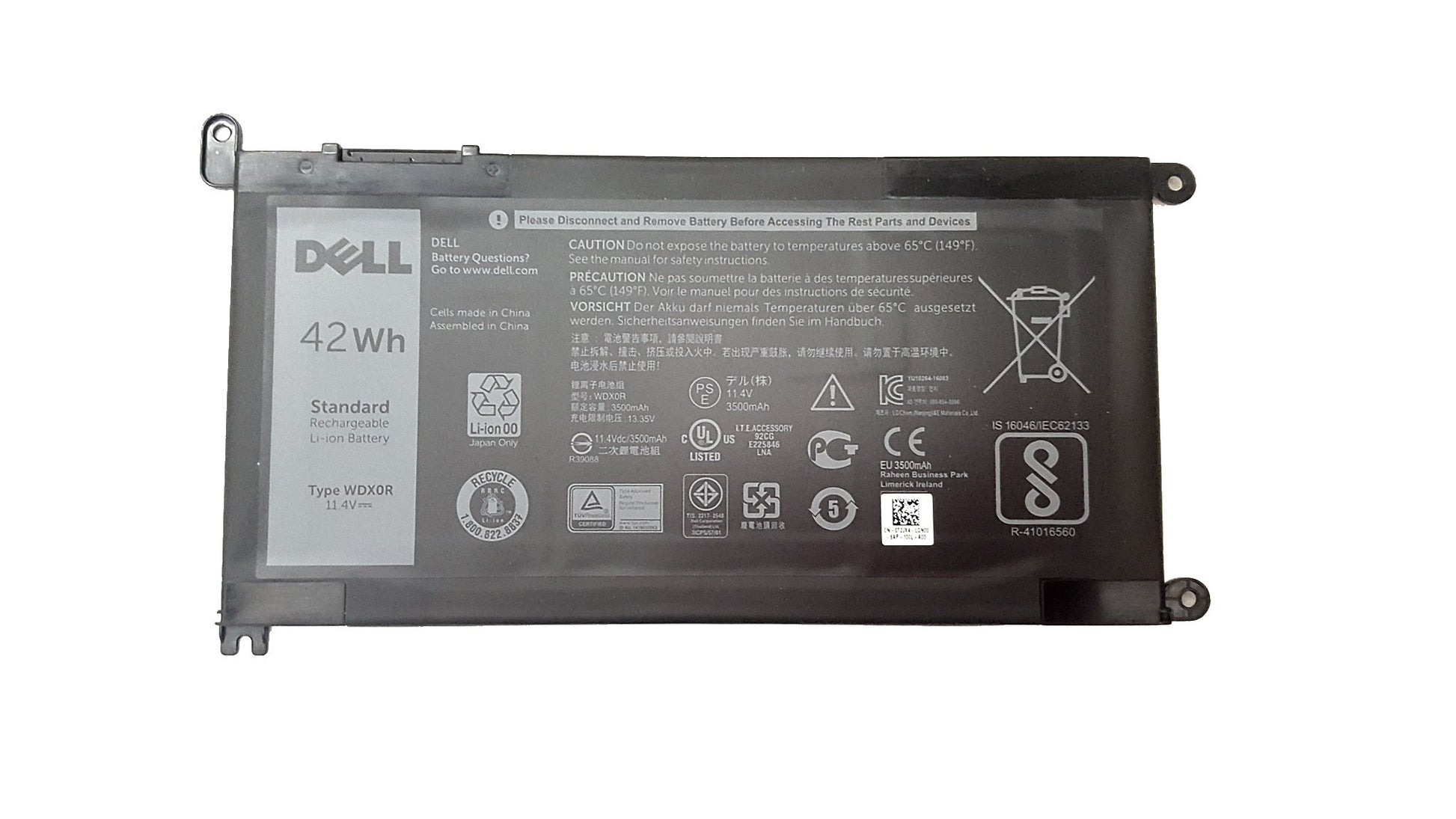

Dell Latitude / Inspiron / Vostro Laptop battery WDX0R 451-BCRD FW8KR 42Wh 3 Cell

New Genuine Dell Replacement Laptop battery WDX0R 0WDX0R Y3F7Y 42Wh and 3 cells. This battery fits a wide range of Dell Latitudes, XPS, and Inspiron.

For a video on how to fit this battery into an Inspiron 5570 please click here

This Dell laptop battery is of the new stock and is equipped with a WDX0R type, Y3F7Y T2JX4 FW8KR 3CRH3 CYMGM FC92N DP/N, and has the capacity of 42Whr with 3 cells. Compatible with Dell Latitude, Inspiron, and Vostro laptops.

Condition: New Dell Stock

TYPE: WDX0R

DP/N: Y3F7Y T2JX4 FW8KR 3CRH3 CYMGM FC92N -  451-BBVN 451-BCRD
Cells: 3-Cell
Wh: 42Whr

This battery fits the following Dell Laptops:

Inspiron 13 5000 (5368) 2-in-1
Inspiron 13 5000 (5378) 2-in-1
Inspiron 13 5000 (5379) 2-in-1
Inspiron 13 7000 (7368) 2-in-1
Inspiron 13 7000 (7375) 2-in-1
Inspiron 14 7000 (7460)
Inspiron 14 7000 (7472)
Inspiron 15 5000 (5565)
Inspiron 15 5000 (5567)
Inspiron 15 5000 (5568) 2-in-1
Inspiron 15 5000 (5570)
Inspiron 15 5000 (5575)
Inspiron 15 5000 (5578) 2-in-1
Inspiron 15 5000 (5579) 2-in-1
Inspiron 15 7000 (7560)
Inspiron 15 7000 (7569) 2-in-1
Inspiron 15 7000 (7570)
Inspiron 15 7000 (7572)
Inspiron 15 7000 (7573) 2-in-1
Inspiron 15 7000 (7579) 2-in-1
Inspiron 15 7000 (7580)
Inspiron 17 5000 (5765)
Inspiron 17 5000 (5767)
Inspiron 17 5000 (5770)
Latitude 3180
Latitude 3189
Latitude 3379 2-in-1
Latitude 3390 2-in-1
Vostro 14 5000 (5468)
Vostro 14 5000 (5471)
Vostro 15 5000 (5568)

• UK Seller - Free UK Next-day Shipping - 12 Months Warranty


Please note: Screws are not included. Please retain the original screw for the installation of this part.

Please Note: This battery requires a cable that goes from the battery to the motherboard. Please keep the cable from the old battery as they are expensive to replace.

How to install the battery

PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.

Removing the old battery

1. Power off the laptop.

2. Turn over the laptop and unscrew the base plate cover.

3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)

4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)

5. Unscrew the battery and remove the battery from the laptop.

Installing the New Battery

1. Align the new battery into position (Do not plug the battery in yet)

2. Install the battery screws

3. Plug the battery cable into the motherboard

4. Replace the base plate by applying light pressure to ensure it's seated correctly.

5. Install the base plate screws

6. Plug the power adapter into the laptop and switch on the laptop.
