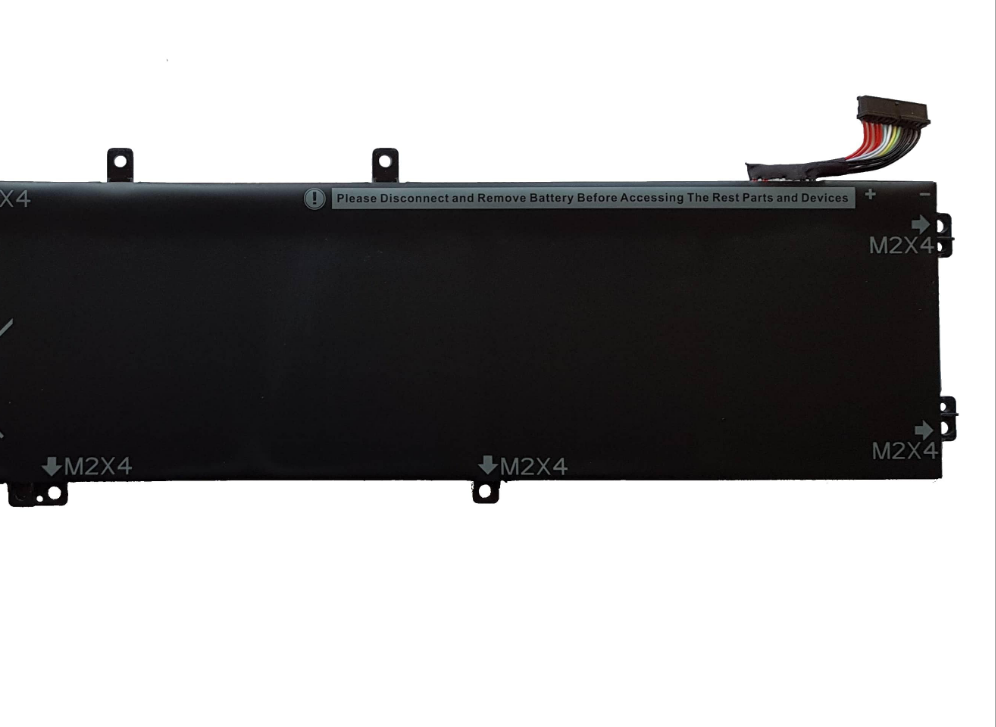

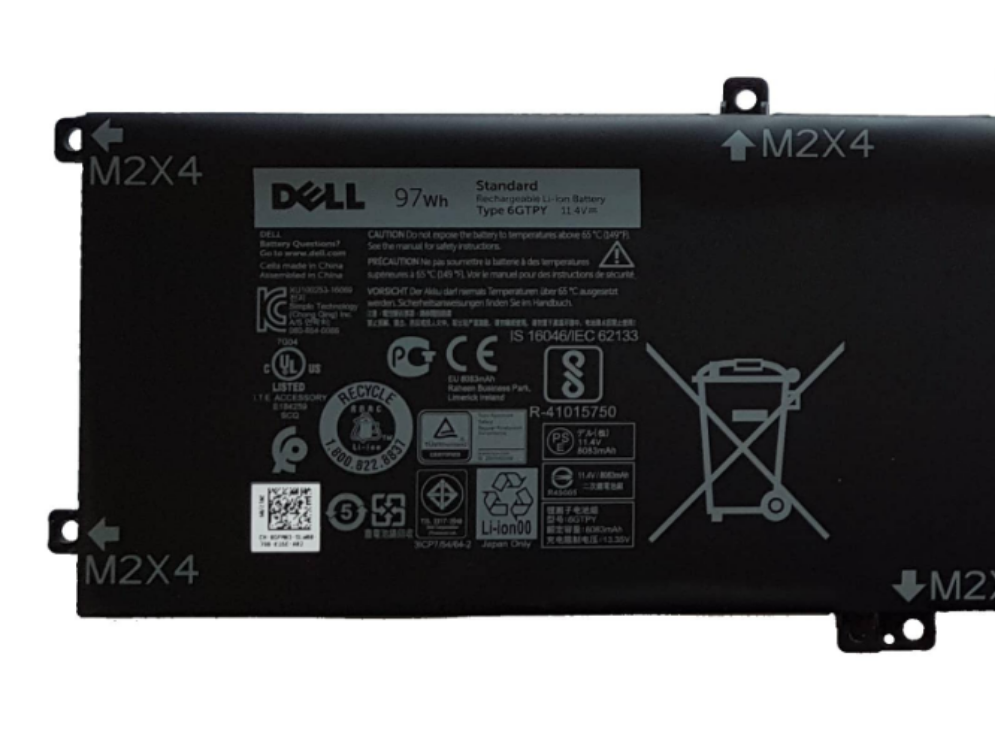

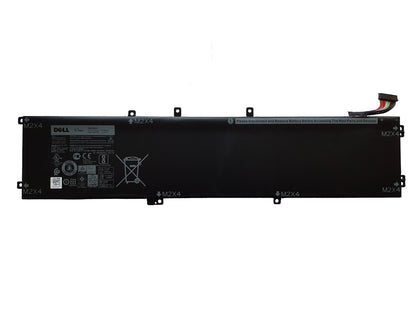

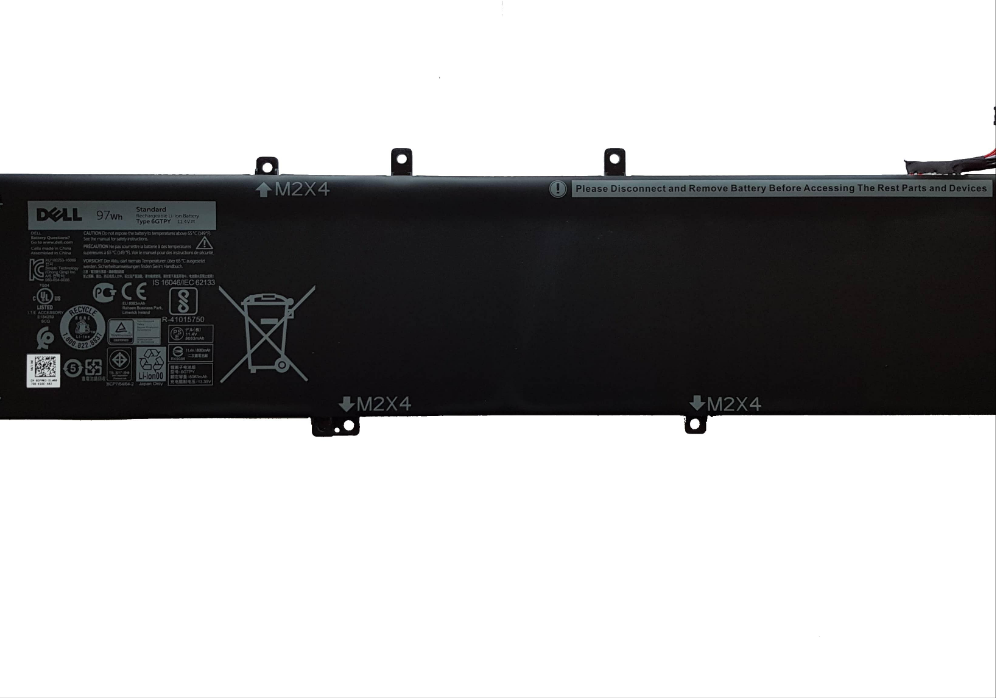

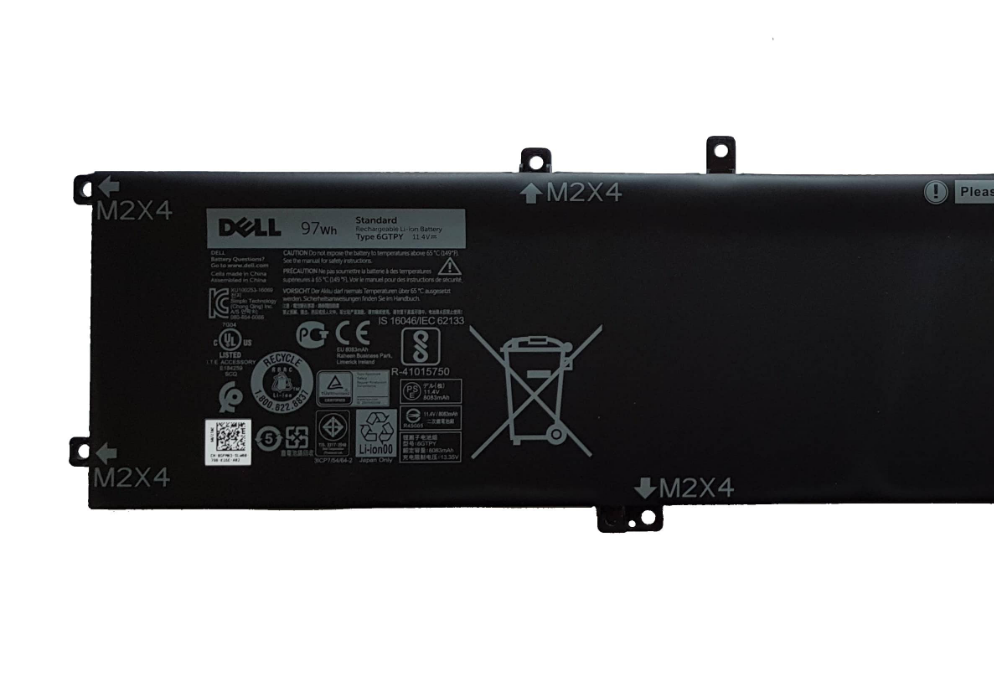

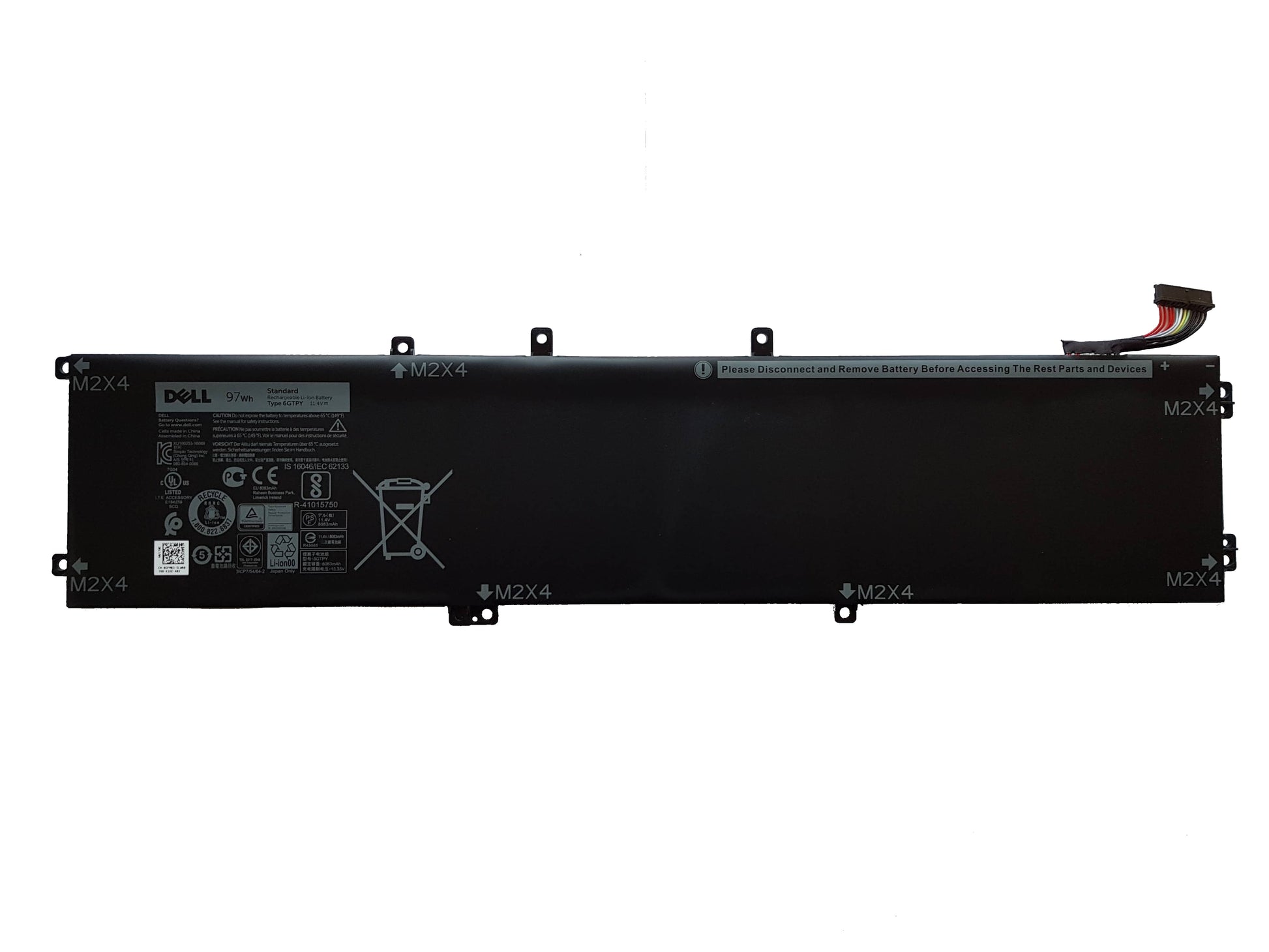

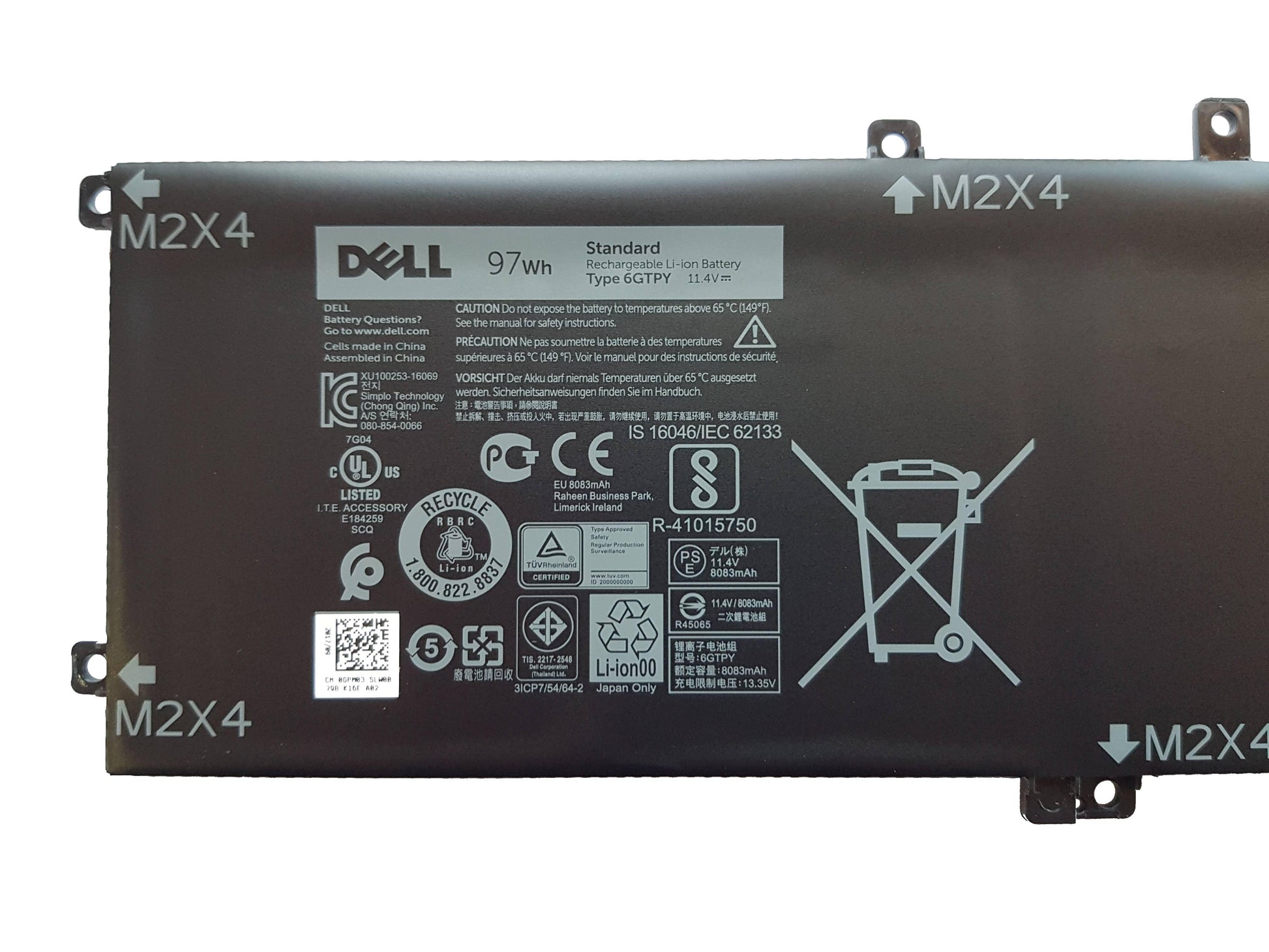

Dell XPS 15 9560 9570 7590 / Precision 5520, 5530, 5540 6GTPY GPM03 97WH Battery

New and genuine Dell Precision 15 5510, 5520, 5530, 5540, and XPS 15 9560, 9570 replacement Laptop Battery. 6GTPY 5XJ28 11.4V 97Wh - Dell 6-cell 97 Wh Lithium Ion Replacement Battery

Please note: If you are upgrading your current battery to this higher-capacity version, please check you have sufficient space to accommodate the extra length.

Specifications:

This Dell battery features 6 cells, with a 97Whr capacity and a nominal 11.4V output, compatible with Dell XPS 9560, 9570, 7590, and Precision 5510, 5520, 5530, and 5540 models. It is brand-new stock and has a Type Code of 6GTPY, with a Dell Part Number of GPM03.

Spec: Dell 6-cell 97 Whr Lithium Ion Replacement Battery

This battery fits the following Dell Laptops:

Chassis Model P56F

Dell Precision 15 5520

Dell Precision 15 5530 (N.B For 5530 2-in-1 please search "8N0T7")

Dell Precision 15 5540

Dell XPS 15 9560

Dell XPS 15 9570

Dell XPS 15 7590

Dell Vostro 15 7000 7590

Dell Inspiron 15 7000 7590

Dell Inspiron 15 7000 7591

Please note: The screws are not included. Please retain the original screws for the installation of this part.

UK Seller - Free UK Next-day Shipping - 12 Months Warranty

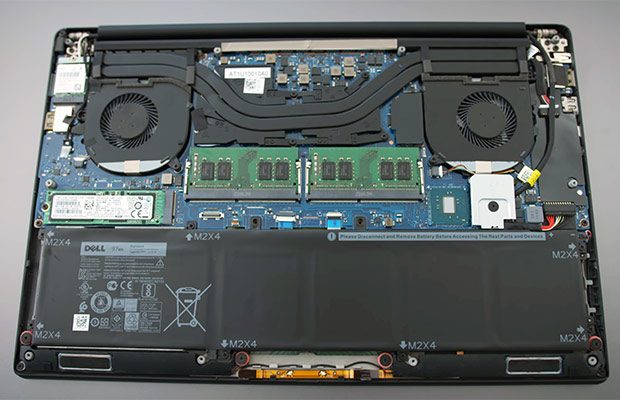

How to install the battery

PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.

Removing the old battery

1. Power off the laptop.

2. Turn over the laptop and unscrew the base plate cover.

3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)

4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)

5. Unscrew the battery and remove the battery from the laptop.

Installing the New Battery

1. Align the new battery into position (Do not plug the battery in yet)

2. Install the battery screws

3. Plug the battery cable into the motherboard

4. Replace the base plate by applying light pressure to ensure it's seated correctly.

5. Install the base plate screws

6. Plug the power adapter into the laptop and switch on the laptop.
