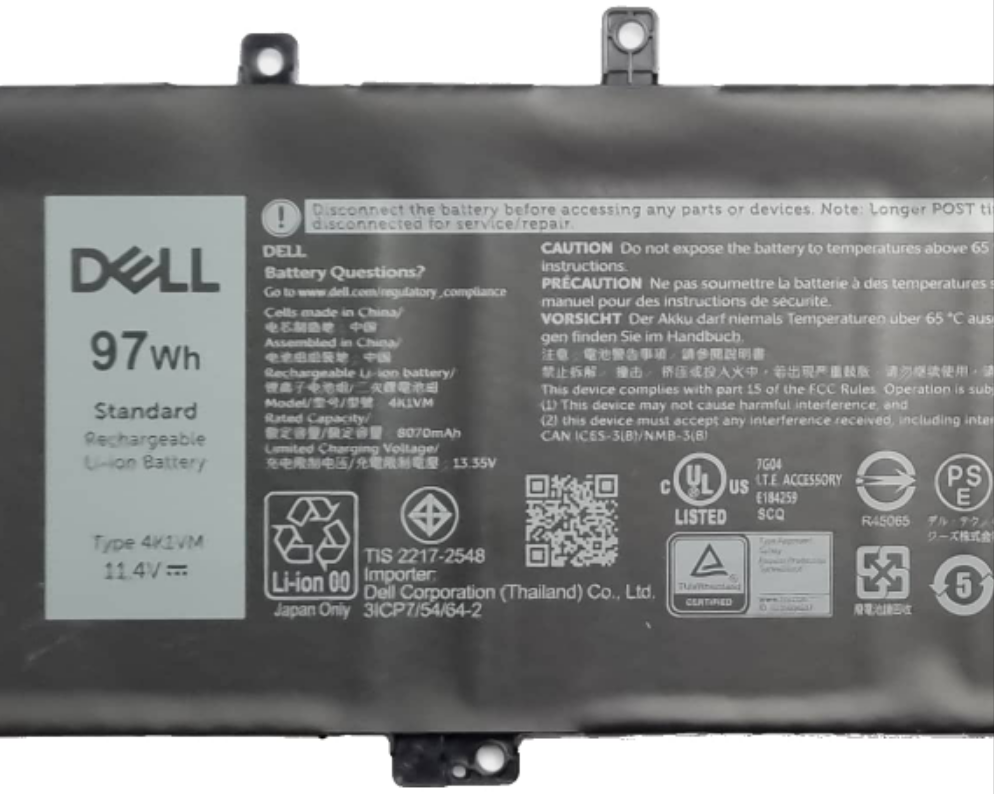

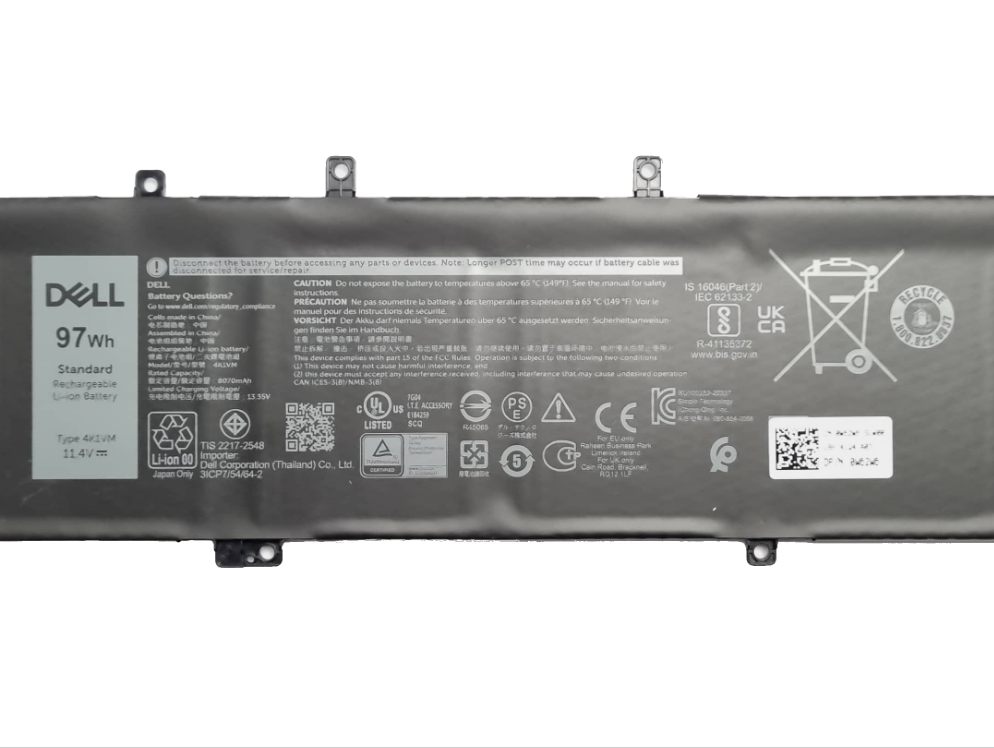

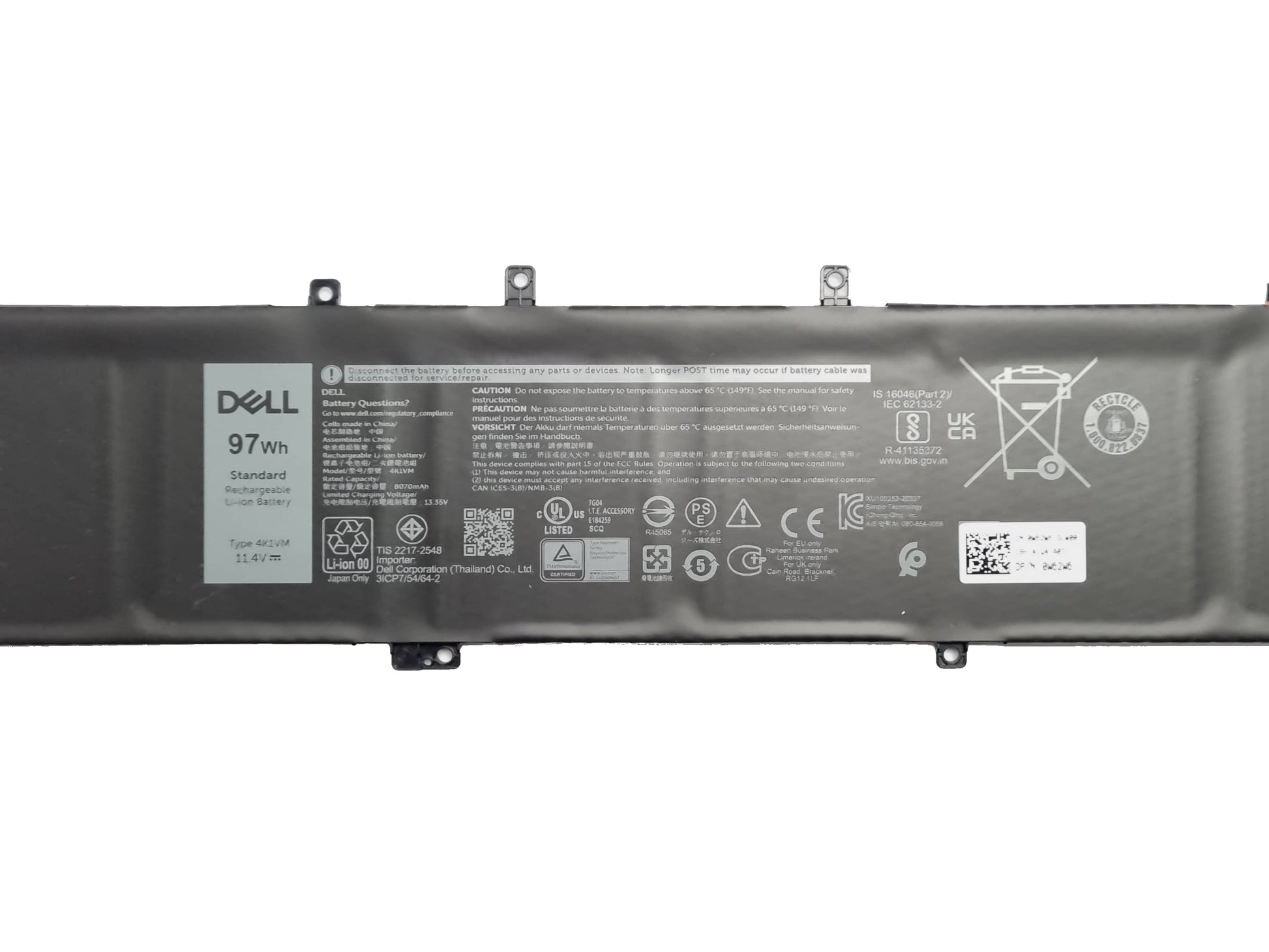

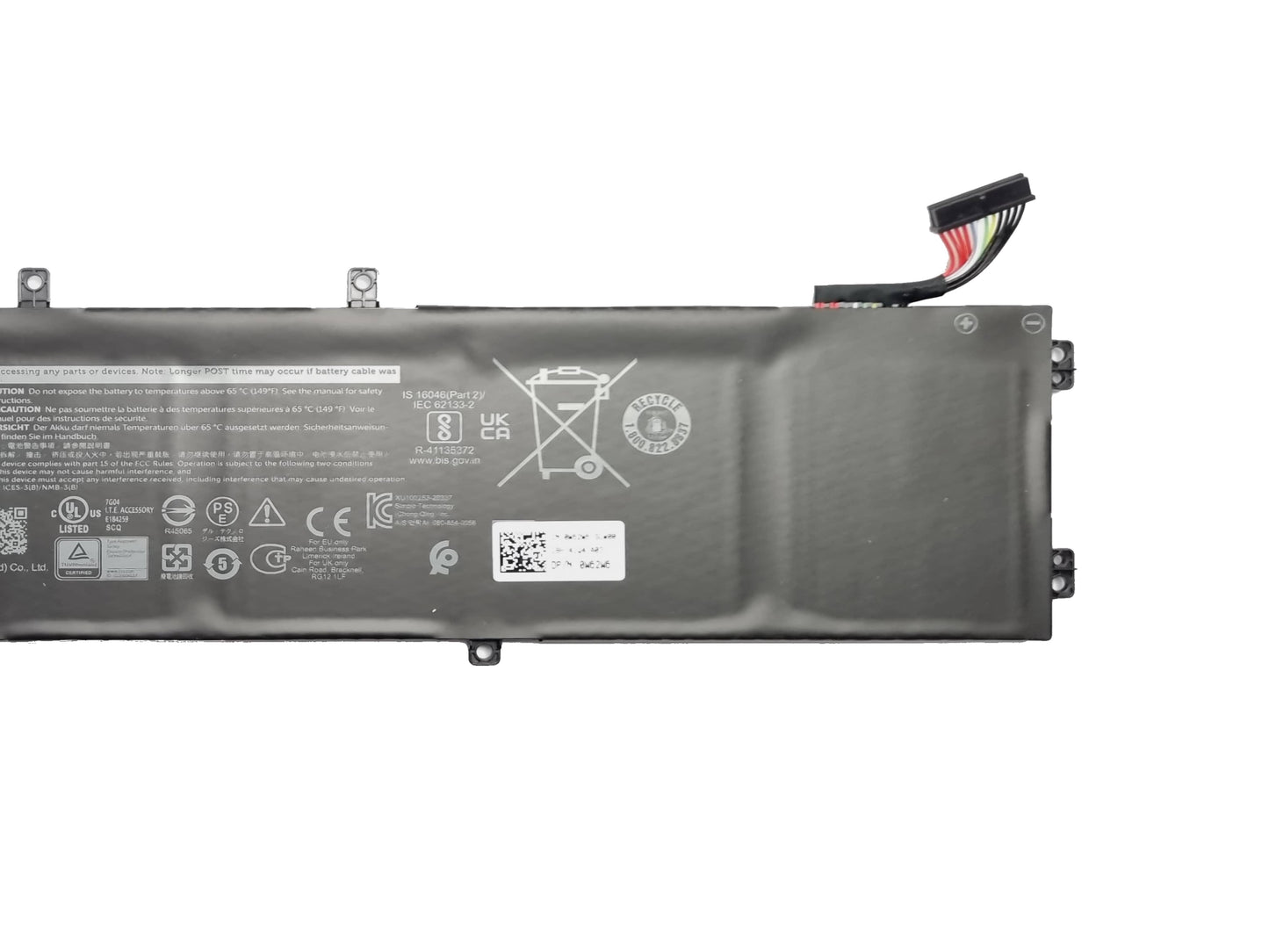

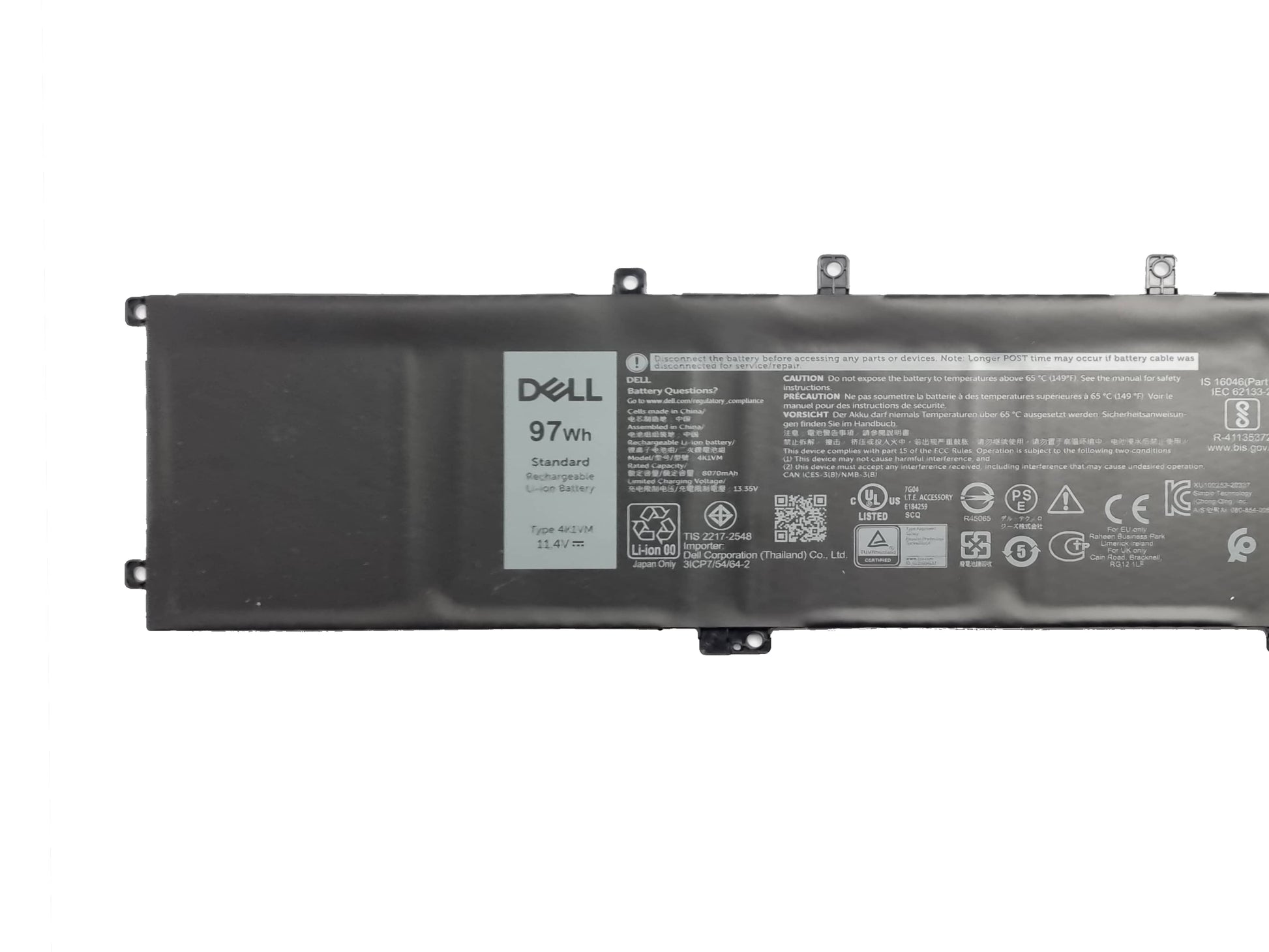

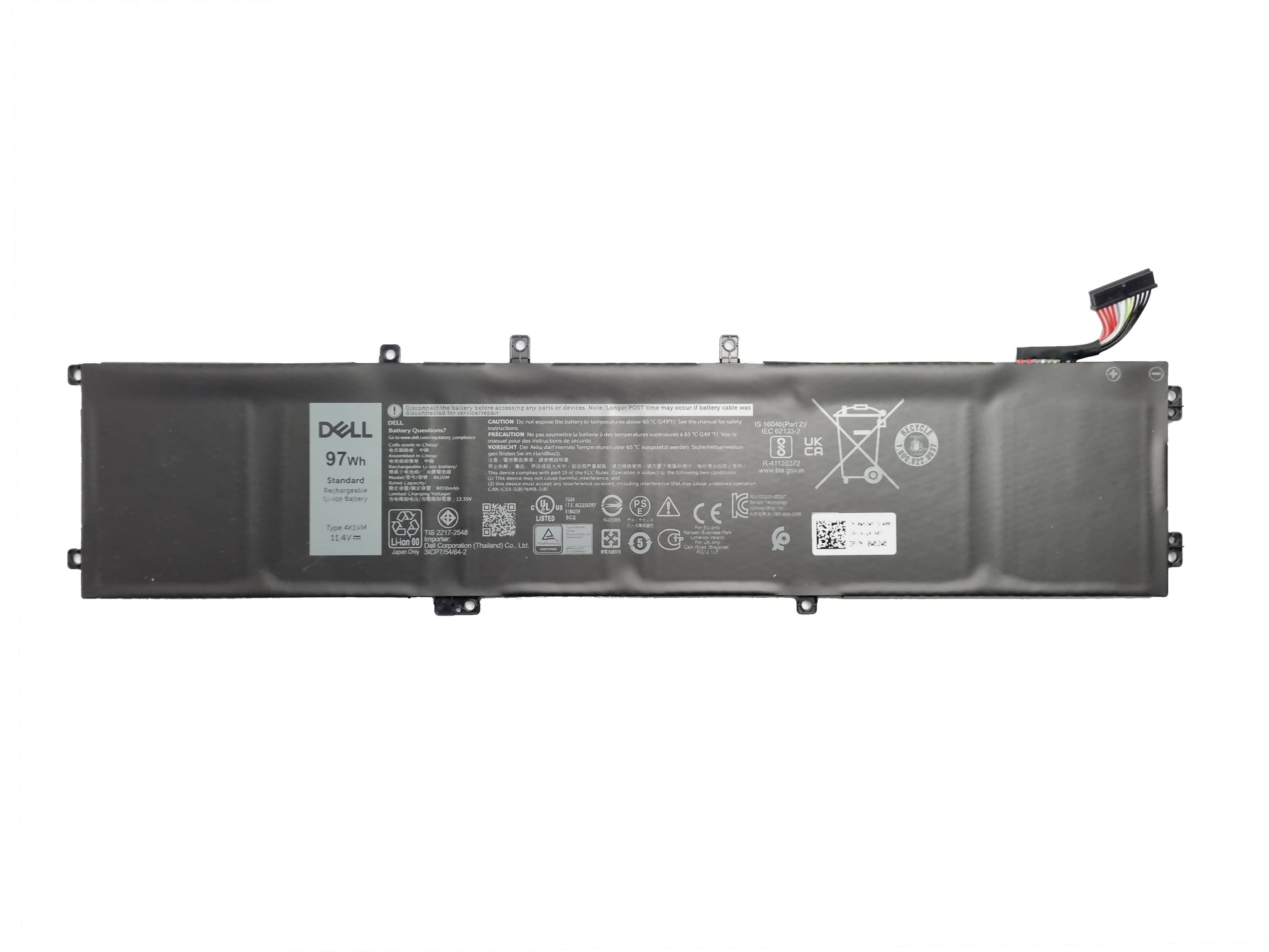

Dell Inspiron/Vostro 7500 7501 7590 G7 7700 Type 4K1VM W62W6 6 Cell 97WH Battery

Dell Inspiron/Vostro 7500 7501 7590  G7 7700 Type 4K1VM W62W6 6 Cell 97WH Battery

Specifications

This 97Whr, 6-cell lithium polymer Li-Po battery by Dell provides reliable power and long life to compatible Dell laptops including Inspiron & Vostro 7500 7501 7590 and other models listed below.

Brand new stock from Dell, this battery offers reliable performance and long battery life.

Condition: New stock from Dell

Type Code: 4K1VM

Dell Part Numbers / DPN: W62W6 / 0W62W6 / XYCW0 / 0XYCW0/ 9TM7D / 09TM7D

Battery Cells: 6 Cell

Technology: Lithium Polymer Li-Po

Watt-Hours: 97Whr

Volts: 11.4V

Fits the following Dell Laptops:

G7 17 (7700)

Inspiron 15 7000 (7500)

Inspiron 15 7000 (7501)

Inspiron 15 7000 (7590)

Inspiron 15 7000 (7591)

Vostro 15 7000 (7500)

Vostro 15 7000 (7590)

Please note: Screws are not included. Please retain the original screws for the installation of this part.

UK Seller - Free UK Next-day Shipping - 12 Months Warranty

How to install the battery

PLEASE NOTE: We are not liable for any hardware damages or injury caused during the installation. We also recommend using anti-static equipment to prevent hardware damage.

Removing the old battery

1. Power off the laptop.

2. Turn over the laptop and unscrew the base plate cover.

3. Remove the base plate from the laptop (Use a prying tool to help unclip in necessary)

4. Identify the battery connector and unplug the battery. (Slide the battery connecter away from the motherboard connector)

5. Unscrew the battery and remove the battery from the laptop.

Installing the New Battery

1. Align the new battery into position (Do not plug the battery in yet)

2. Install the battery screws

3. Plug the battery cable into the motherboard

4. Replace the base plate by applying light pressure to ensure it's seated correctly.

5. Install the base plate screws

6. Plug the power adapter into the laptop and switch on the laptop.
